Superior Carbide Milling Inserts for Processing Curved Surfaces and Arc Grooves High-Speed Performance

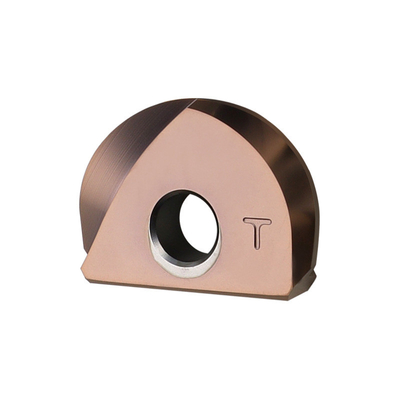

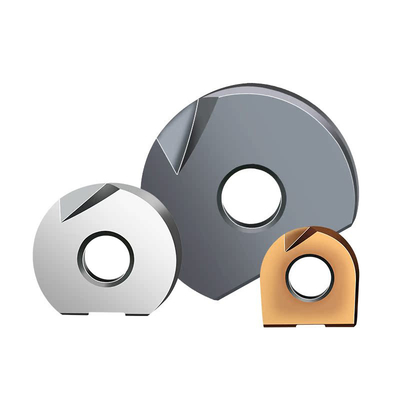

The P3200 is a specialized carbide ball milling insert designed for use in CNC milling machines. These inserts are particularly effective for processing curved surfaces and arc grooves, making them ideal for semi-finish milling at high speeds across a variety of materials, especially stainless steels and high-temperature alloys.
Product Details — P3200
Material Quality
- Composition: Made from 100% original carbide powder, including grades K10-K20, P10-P20, and M10-M30, ensuring excellent wear resistance and toughness.
Usage
- Primarily used for R angle processing and machining of curved surfaces.
Dimensions
- Diameter (D): 8 to 25 mm
- Radius (R): 4 to 12.5 mm
- Height (h): 9.5 to 21.15 mm
- For specific dimensions, please refer to the product specifications below.
Coating
- Advanced Coating: Coating options will be defined based on your application needs, utilizing cutting-edge technology for enhanced corrosion and wear resistance.
Fine Grinding Process
- The insert surface features high smoothness and superior cutting edge quality, effectively reducing friction and tool wear.
Perfect Fit
- Designed with precise and smooth edge strips to minimize micro-vibration during processing.
Applicable Materials
- Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
- Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.
Customization
- If the standard stock does not meet your specifications, please provide CAD or 3D drawings for a tailored solution.
Production Quality
- All inserts are produced using advanced EU processing equipment. For more information, refer to the “Entire Production Quick View” section below.
Product Features
- Suitable for processing steel, stainless steel, and aluminum.

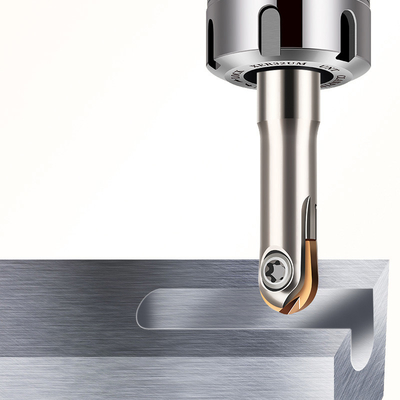

- Widely utilized for various curved surfaces and arc groove machining.
- Exceptional wear and breakage resistance.
- High precision and easy replacement ensure compatibility with tool holders, minimizing micro-vibration during processing.
- High-performance composite coating provides a super hard and smooth surface.
Product Specification
| Part Number |
Dimensions (mm) |
| P3200 |
Refer to specifications |
Note: For detailed dimensions, please consult the specifications. Custom sizes can be processed according to customer requirements.
Entire Production Quick View
- Utilize 100% original carbide powder to create integral insert blanks.
- Conduct flat grinding machining.
- Perform surrounding grinding machining.
- Create precise cutting edges.
- Execute chamfering and tip-arc processing of the cutting edge.
- Apply composite coating for enhanced performance.
Product Specification:
| Part Number |
Dimension(mm) |
| D |
R |
h |
H |
| P3200-D08 |
8 |
4 |
9.5 |
2 |
| P3200-D10 |
10 |
5 |
11.5 |
2.5 |
| P3200-D12 |
12 |
6 |
11.5 |
2.5 |
| P3200-D16 |
16 |
8 |
14 |
3 |
| P3200-D20 |
20 |
10 |
16 |
3 |
| P3200-D25 |
25 |
12.5 |
21.5 |
4 |
| Attention:The above are our standard production size and standard stock specifications for this series, the size details can be processed separately according to customer requirements |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Technical innovation: complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: high quality guaranteed,high precision, up to 0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
